3S-1802 - 3sixT Prime Motorised Vent Mount 15W w/o Car Charger Black

Product details

• Product Model: 3S-1802
• Product Name: 3sixT Prime Motorised Vent Mount 15W w/o Car Charger Black
• Dimensions: 124 x 73 x 65mm
• Weight: 145g
• Colour: Black

What's in the box

• 1x 3sixT Prime Motorised Vent Mount 15W w/o Car Charger Black
• Warranty card

Supported devices

• Ideal for Qi-compatible smartphones

Technical specifications

• USB-C input: 12V/1.67A, 9V/2A, 5V/2A

• USB-C Output: 9V/1.67A, 9V/1.12A, 9V/0.83A, 5V/1A

• Charging power: 5W / 7.5W / 10W / 15W

• 15W super fast charger

• Secure vent mount system with automatic clamping arms and adjustable feet

• Smart sensor

• Operating temperature: -10 to 60 °C

• Charging distance: ≤6mm

• Charging Efficiency: 75%

• Internal battery: 250mAh

• Electric Brush Motor: up to 50000 times

• Foreign Object Detection (FOD): Yes

• OTP/OCP/OVP: Yes

• Qi-compatible: Yes

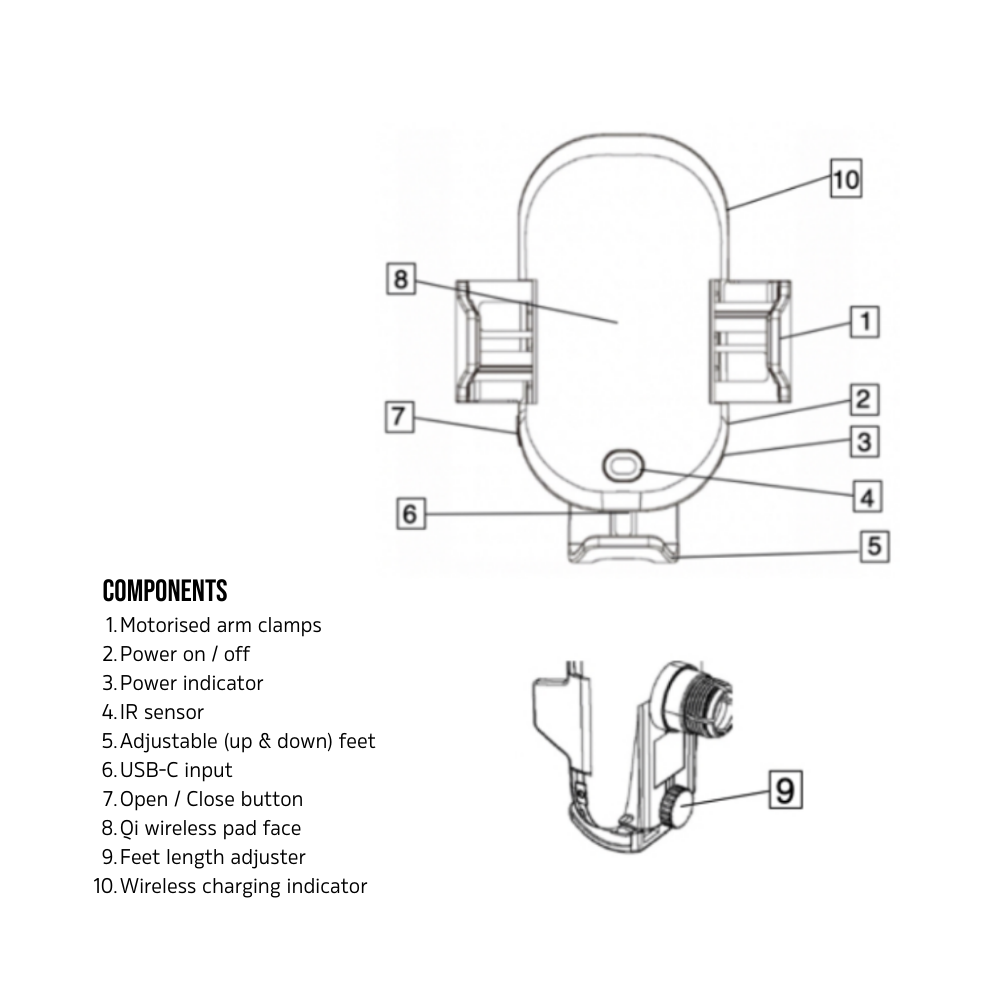

Components

Operating instructions

• ATTACHING THE MOUNT (SUCTION)

  1. Locate a suitable clear, clean and dry area on your dashboard/window screen.

  2. Loop the nut through the Suction mount ball, making sure it is the correct way around (larger opening facing toward the Prime mount).

  3. Together, push the ball end onto the female joint housing of the Prime mount and push until it clicks into place.

  4. Once in position thread the nut on the female joint housing by screwing it in a clockwise direction.

  5. Make sure the nut is screwed in hand tight, to a point where the ball joint/window mount is difficult to move.

  6. Place the mount into position and firmly push the suction mounting cup against the dashboard/window.

  7. Activate the locking lever by pushing it down into the second position to secure it in place and create a stable hold.

• REMOVING THE MOUNT

  1. Push the locking lever upwards to release.

  2. Lift the tab at the edge of the suction mounting cup.

  3. Remove the mount. (Residual marks can be easily cleaned off with a slightly wet cloth).

• ATTACHING THE MOUNT (CROCODILE/STANDARD VENT MOUNT)

  1. Locate a suitable vent location within your car.

  2. Loop the nut through the vent mount ball, making sure it is the correct way around (larger opening facing toward the Prime mount).

  3. Together, push the ball end onto the female joint housing of the Prime mount and push until it clicks into place.

  4. Once in position thread the nut on the female joint housing by screwing it in a clockwise direction.

  5. Make sure the nut is screwed in hand tight, to a point where the ball joint/vent mount is difficult to move.

• CONNECTING THE DEVICE TO A POWER SOURCE
  The mount requires a Qualcomm® Quick Charge™ 3.0 charge port to be able to work at optimum fast charging speeds. If an incorrect charger is used, the wireless charging function may not charge at its intended speed and/or may not work correctly or at all. See the 3SIXT website for compatible products here: https://www.3sixtgear.com/product/power/car-chargers/quick-charge-car-chargers/dualusb-qc3-carcharger-54a-black/

  1. Connect the USB-C connector to the device mount USB-C input.

  2. Plug the Qualcomm 3.0 car charger into the car’s cigarette lighter socket.

  3. Connect the included cable USB-A end into the Quick Charge 3.0 port on the car charger.

• WIRELESS CHARGING
  Charging takes place upon full contact of the smartphone on the face of the mount itself (8).

  1. Press the open/close button (7) to activate the arm clamps (1) into the open position.

  2. Quickly place your Qi-enabled smartphone onto the face of the mount (8). Once within range (between 6-8mm) the wireless charger will automatically activate via Qi wireless technology.

  3. Depending on the size of your device you will need to adjust the feet up or down to get a central position of your device on the mounting system (5 & 9).

  4. By covering the centrally positioned IR sensor (4), the clamp arms (1) will automatically close to the size of the device for a firm and secure hold.

  5. If positioned correctly charging will automatically take place. If unmuted your device will sound an audible sound to indicate this has occurred and visually indicate charging has been initiated. The 3SIXT Prime Mount charging LED indicator will also activate (3).
  6. The 3SIXT Prime Mount is fitted with a back-up battery backup to enable you to activate the clamp arms via the touch pad/power button (open button override (7) once the engine of your vehicle has been switched off for unhindered retrieval.
• UNDERSTANDING LED WIRELESS CHARGING INDICATORS (10)
  1. Red - Standby
  2. Blue – Charging underway
  3. Blue/Red Flashing – Foreign object detected
  4. Off – Device fully charged
• UNDERSTANDING THE LED POWER INDICATORS (3)
  1. Solid Blue - On
  2. Blinking Blue – Low Battery
  3. Red/Off - Error



Please note:

• • 3SIXT strongly advises customers to utilise the included vent mounts to ensure seamless operation during peak summer periods/temperatures. Not following this direction could lead to your device overheating, slowing of operation or even shutting down into a safe mode.
  • Do not manually pry open the Prime mount arms when retrieving your device. Instead, please press the open/close button and the arms will open automatically. Not following this instruction may affect operation and cause malfunction.

Safety warnings

Please read all instructions and warnings before using this product. Use the product only in dry conditions. Improper use of this product may result in fatal accidents, injuries, and damages to persons and property, for which damages you ("the Customer") and not 3sixT ("the Manufacturer") are responsible.

WARNINGS

• Avoid stresses such as heat and cold, moisture and direct sunlight, vibration and mechanical pressure onto the product.

• Do not rotate inside the charger receptacle.

• Under no circumstances should you attempt to disassemble or modify the product.

• This accessory is intended solely for use by adults and not by minors. Please be aware that this device may include small parts, plastic elements, and components with sharp edges that could potentially cause injury or pose a choking hazard. The customer takes full responsibility for ensuring compliance, and any misuse or unintended use by a minor shall indemnify the manufacturer from liability.

• All 3sixT products undergo a thorough quality inspection during manufacture. However, if you notice excessive heat, deformation, or smoke emitting from the product immediately stop using this product and contact 3sixT.

CONTACT US
Customer Support Team
E: [e-mail]
T: Monday - Friday 9am-5pm AEST

Warranty information

3SIXT 3-YEAR STANDARD MANUFACTURER WARRANTY

3sixT will replace the faulty product at no cost to the consumer. The warranty does not extend to any consequential damages or costs that may be incurred and is valid for 3 YEARS from the date of purchase.

The consumer must return the faulty product to the retail store it was purchased from together with proof of purchase. The benefits to the consumer under this warranty are in addition to other rights and remedies of the consumer under Australian and New Zealand laws in relation to the goods to which the warranty relates.

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

The warranty is provided by:
Cellnet Group Limited (ACN: 010 721 749) trading as 3sixT Gear

• AU: E1, 5 Grevillea Place, Brisbane Airport, QLD 4008
• NZ: 10a Orbit Drive, Rosedale, Auckland 0632

Related warranties

• 3-Year Standard Manufacturer Warranty OR
• 3sixT 5-Year Extended Manufacturer Warranty with registration here
